| Samsung Galaxy J2 SM-J200H Schematic Diagram |

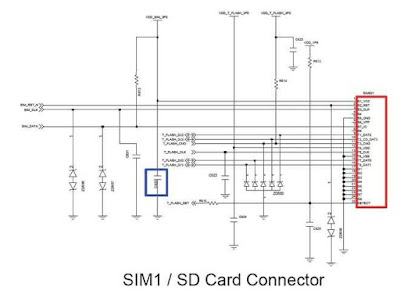

Download free Samsung Galaxy J2 SM-J200H Schematic Diagram PDF - This Samsung Galaxy J2 SM-J200H Schematic Diagram covered; SM-J200H Block Diagram, PCB Diagrams, Bottom, Flow Chart of Troubleshooting, Power On, Initial, No Service., SIM & SD Card Working, SIM2 Connector, Charging part, Microphone Part, Speaker Part, Receiver Part, LCD Working, TSP Working, Vibrator LDO / PAD, 5M CAM, 2M CAM, GSM850 RX, DCS/PCS RX, WCDMA Band1 RX, WCDMA Band8 RX, GSM850/900 TX, DCS/PCS TX, WCDMA Band1 TX, WCDMA Band5 TX, WCDMA Band8 TX, Bluetooth/WIFI, GPS.
